- Classification:
-
Laboratory Centrifuge
- Place of Origin:
-
Qinghai, China
- Brand Name:
-
DRAWELL
- Model Number:
-
DW-TG16-W
- Max Speed:
-
16000r/min
- Max RCF:
-
17800xg
- Motor:
-
Brushless DC Motor
- Timer Range:
-
0~99min
- Noise:
-
≤50dB(A)
- Speed Accuracy:
-
±50rpm
- Material:
-
stainless steel
- CE Certified.
- Valid from 2017-04-14 until 2022-04-13
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- Standard Export packaging (Safe and pure English) ; wooden box protection .
- Port
- SHANGHAI

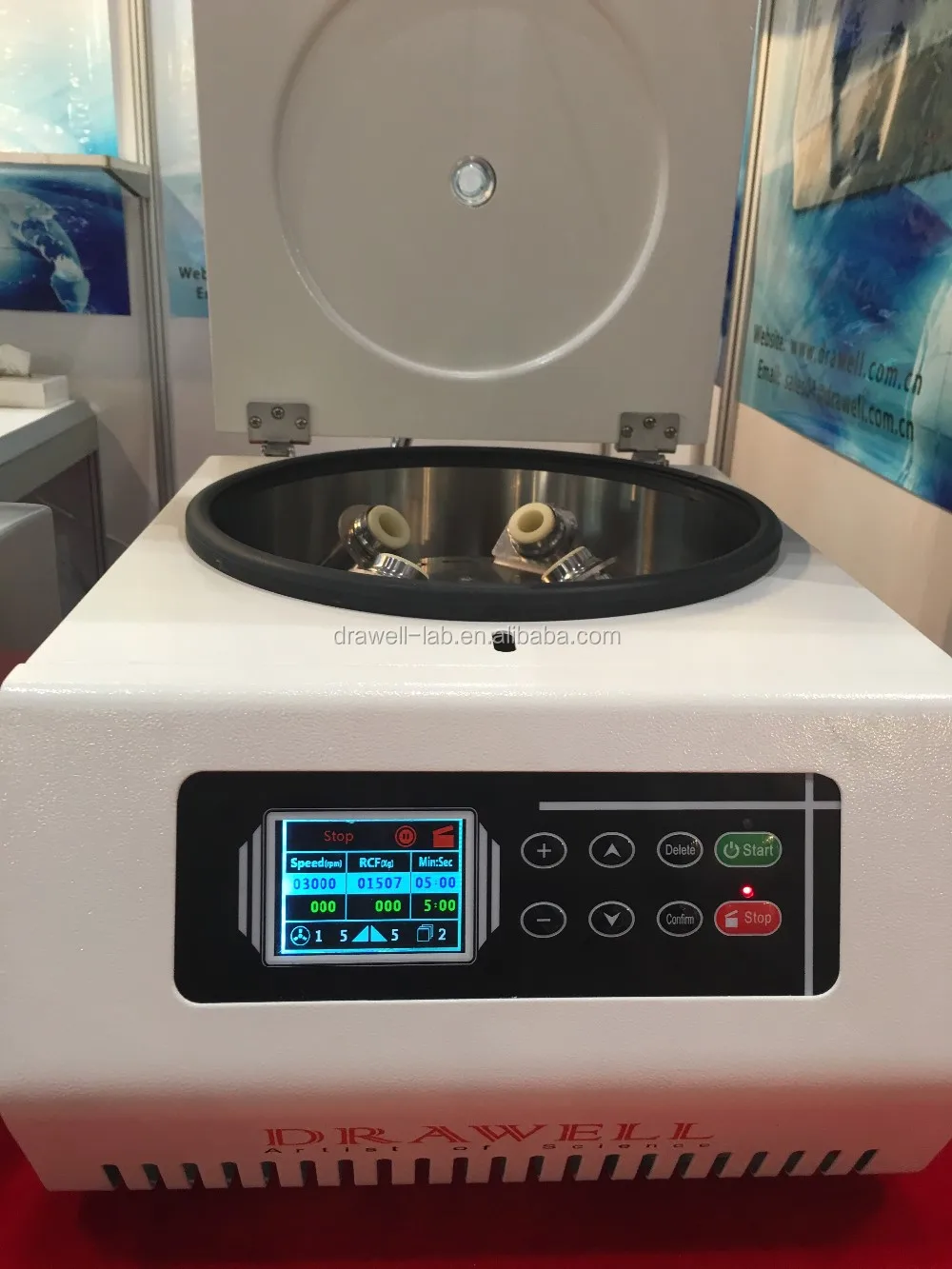

Benchtop Micro High-speed Centrifuge
DW-TG16-W
2. Adopt advanced CPU control system realizing microprocessor control,it can control rotate speed,time and relative centrifuge force.
3. Maintenance-free frequency conversion motor with an accurate control system. Speed Range: 0~16000rpm, Speed Accuracy:±50rpm.
4. The speed and the centrifugal force step adjustment is 10 RPM/10xg. Time control: 0-99 minutes, accuracy is ±1 SEC/continuous centrifugal/ instantaneous centrifugal;
5. Stainless steel recessed, solid structure, and is suitable for sustainable use, air spring, easy open cover, automation lock cover ensure safety.
6. Equipped with door cover protection, with the self-diagnostic system and protection for imbalance, over-speed and over-temperature. People can monitor the centrifuge process to ensure the safe operation.
7. Complying with CE security certification, and certified by ISO9001 and 13485 quality system.
Technical Data
Model | TG16-W | ||
Max Speed | 16000r/min | ||
Max RCF | 17800xg | ||

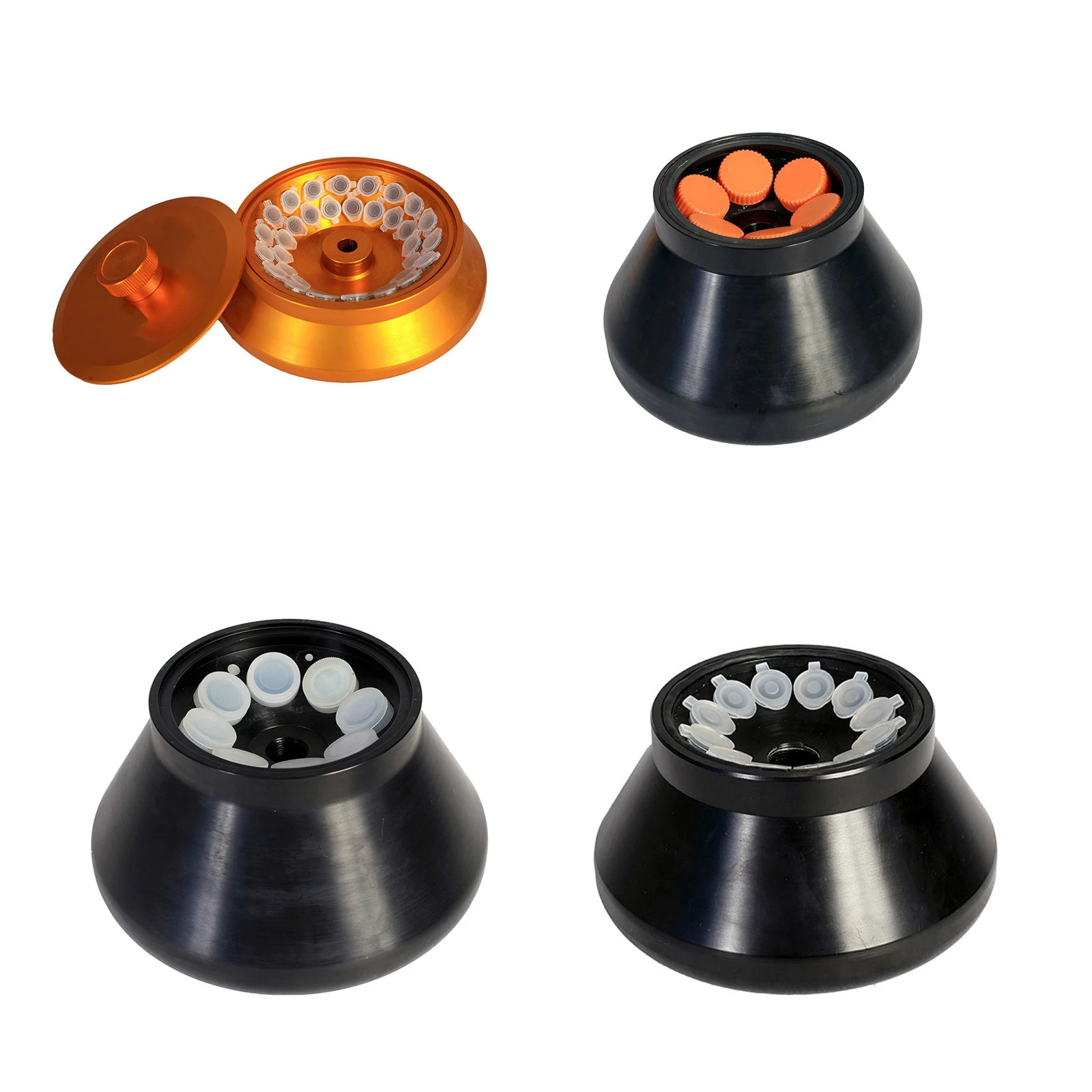

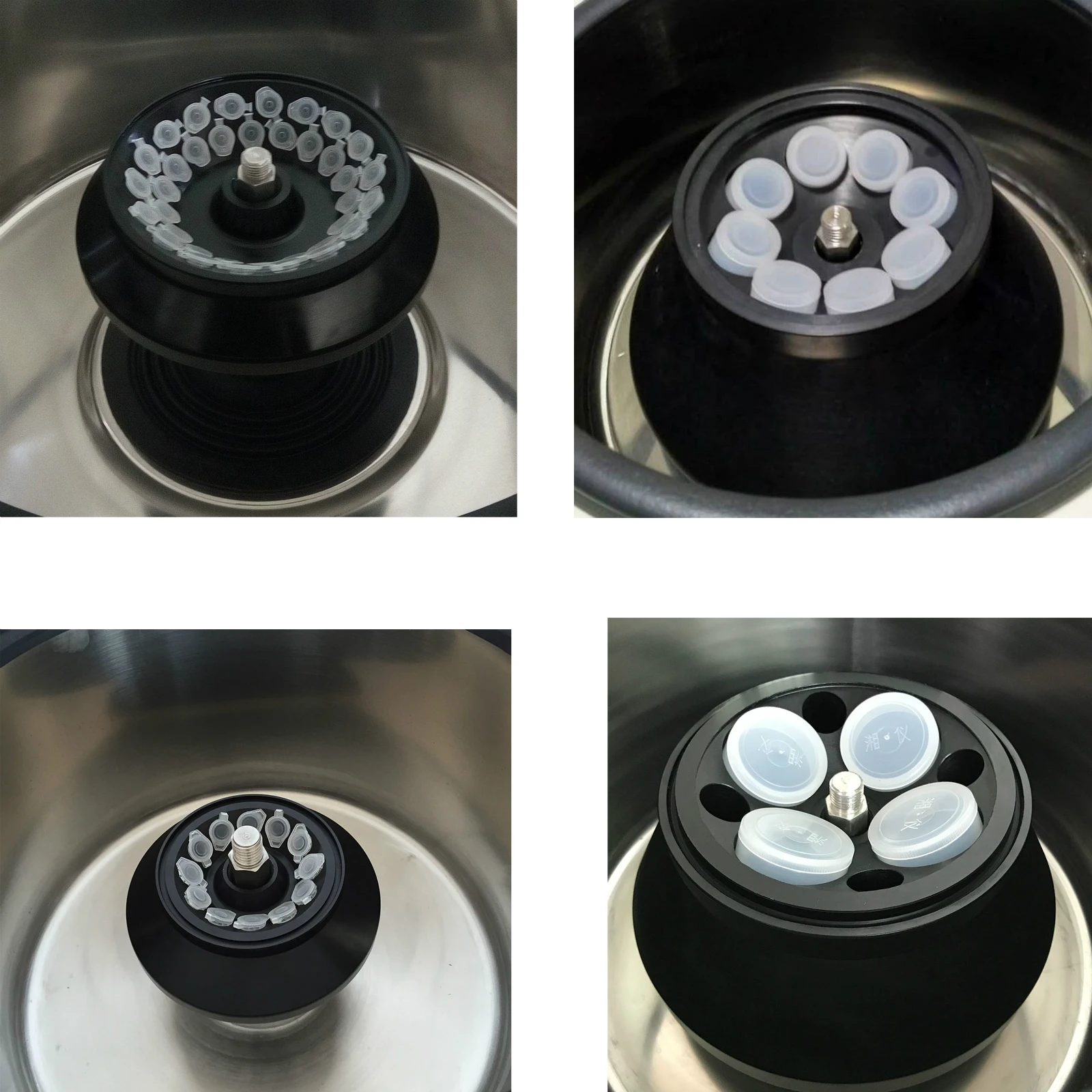

NO.1 Angle Rotor | 12×1.5/2.2ml | 16000r/min | 17800×g |
NO.2 Angle Rotor | 8×5ml | 13000r/min | 11400×g |
NO.3 Angle Rotor | 18×0.2/0.5ml | 13000r/min | 11400×g |
Motor | Brushless DC Motor | ||
Timer Range | 0~99min | ||
Noise | ≤50dB(A) | ||
Power Supply | AC220v 50Hz 2A | ||
Dimension | 330×220×210mm(L×W×H) | ||
Weight | 10kg | ||
