High Quality new types spectrophotometer visible spectrometer price

FOB Reference Price:Get Latest Price
$180.00 - $598.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
DRAWELL
Model Number:
DV-8000
Size:
431x318x195mm
Weight:
10kgs(Gross Weight)
Focal Length:
4.0nm
Wavelength Range:
325-1020nm
Measurement Range:
325-1020nm
Detector:
Silicon Photodiode
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export packaging,safe carton box with pure english
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description

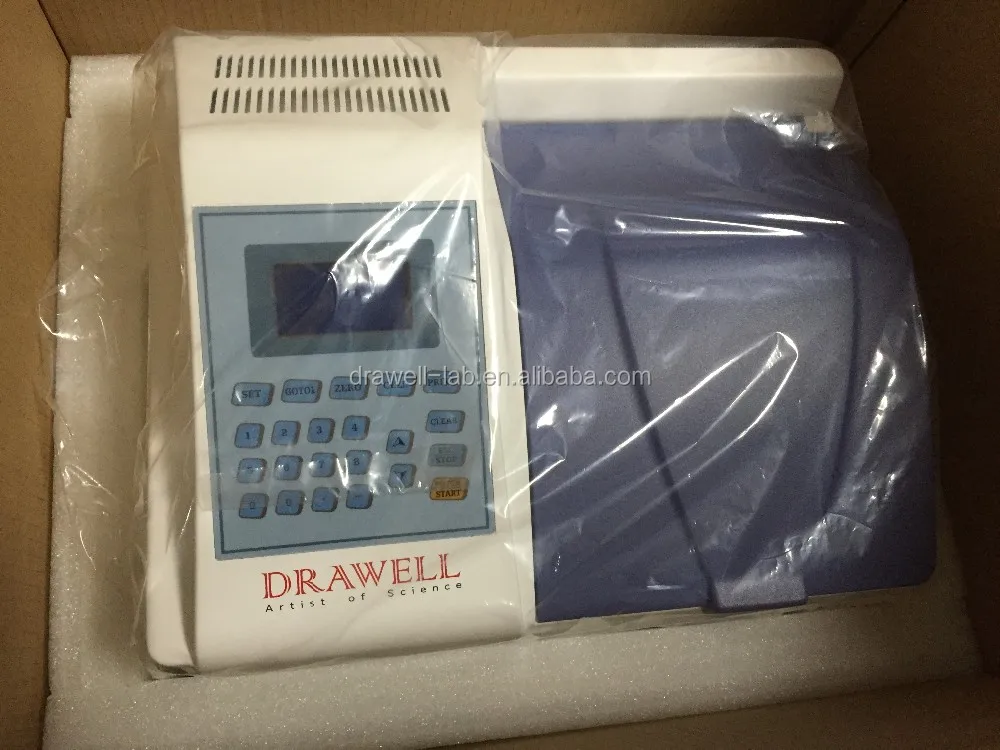

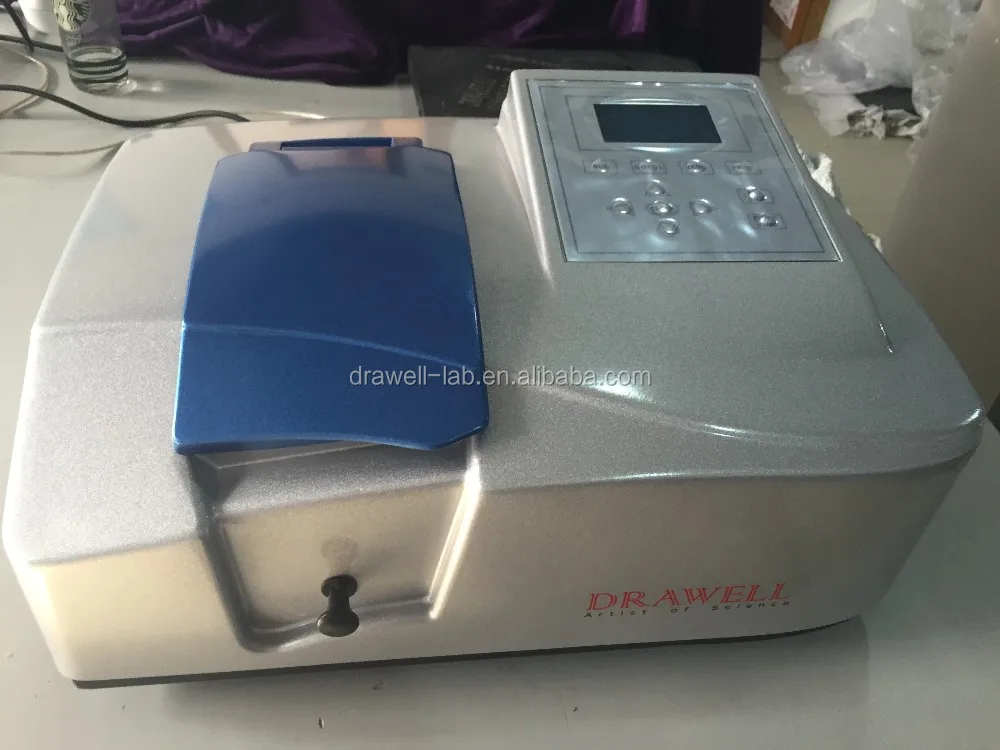

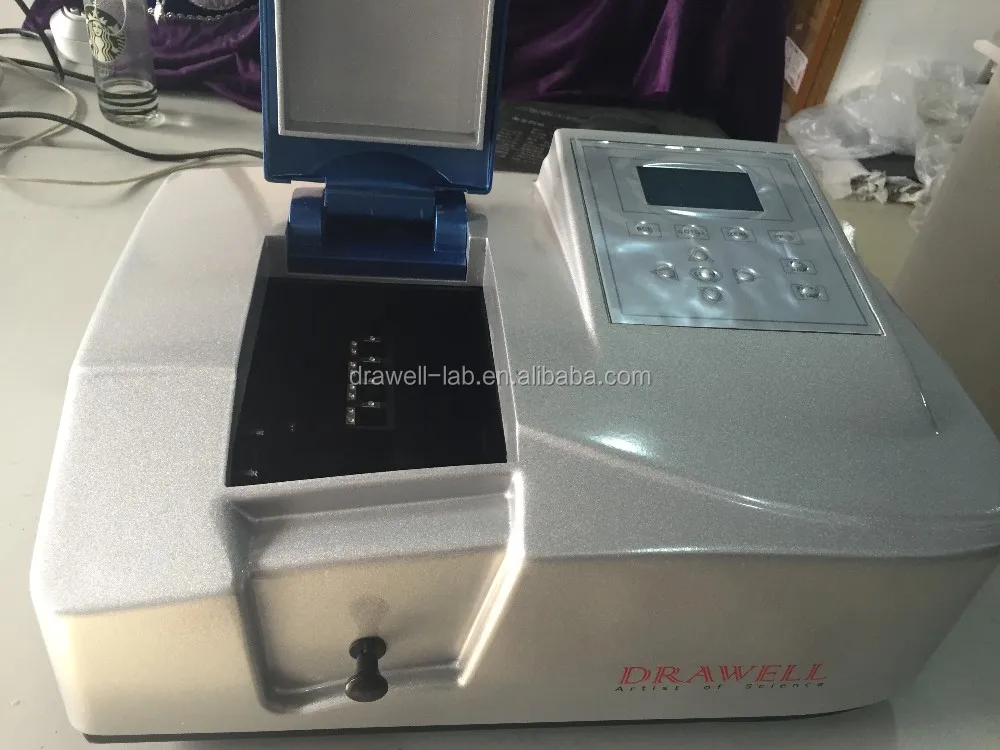

DV-8000 Visible Spectrophotometer



       8000 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard. They are widely used in colleges and quantitative analysis lab.





Features

  • Small fine design, space saving
  • The excellent optical and electric system
  • Low noise and Low stray light
  • High quality grating, detector and lamps
  • Data and Curve can be stored in real-time
  • Auto setting WL, auto Blank
  • Easy to change Pri-aligned lampsReinforced baseboard and bracket assures durability

Specifications:



Model

DV-8000

Wavelength Range

325-1020nm

Spectral Bandwidth

4.0nm

Optical System

Single Beam, Blazed Holographic Grating (1200 lines/mm)

Wavelength Accuracy

±2.0nm

Wavelength Repeatability

≤0.5nm

Wavelength Setting

Manual, Resolution 0.1nm

Photometric Range

0~200%T, -0.3­~3A, 0~9999C

Photometric Accuracy

±0.003A (0~0.5A), ±0.005A (0.5~1A), ±0.5%T (0~100%T)

Photometric Repeatability

≤0.002A (0~0.5A), ≤0.003A (0.5~1A), ≤0.2%T (0~100%T)

Stray Light

≤0.2%T (220/360nm)

Scan Speed

High, Medium, Low.  Max.1000nm/minute

Stability

≤0.002A/h (500nm,0A)

Noise

±0.2%T(0%T);±0.5%T(100%T);±0.001A (500nm)

Sample Compartment

Accommodate 5-100mm Pathlength Cuvette

Detector

Silicon Photodiode

Lamps

Tungsten Lamp & Deuterium Lamp (Pre-aligned)

Display

Graphic LCD (128x64 Dots)

Output Port

USB Port & RS232 Port

Printer

Mini Serial Printer; PC Printer

PC Software

Optional PC Scanning Software

Power Requirements

AC 220V,50/60Hz

Dimension

431x318x195mm

Net Weight / Gross Weight

8kgs / 10kgs

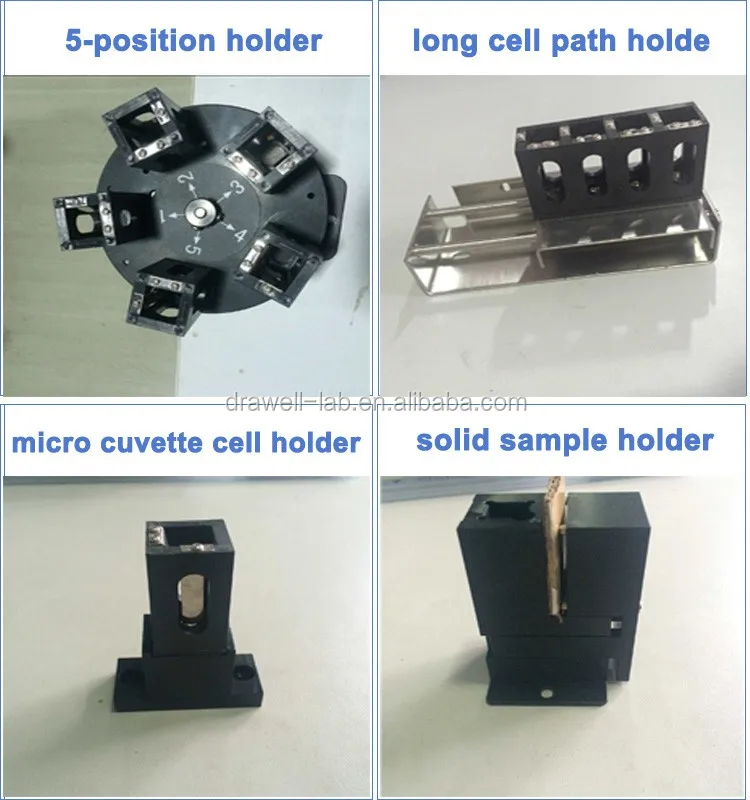

cuvette holder modelsIMG_3843.JPGDU8600 UV-Vis Spectrophotometer .JPGcuvette holder modelsIMG_3844.JPGOptional Cuvette.jpgStandard Configuration Cuvette.jpg
